Loft

Learn how to create new 3D Guide using already drawn curves.

Create 3D Guide with Curves

Challenge yourself with more complex and diverse shapes. Connect curves in sequence to create a new 3D Guide.

Switch to Loft

Tap the Draw icon in the tool menu at the top right of the screen. In the bottom context menu, select Loft. Make sure the slider on the left side of the screen changes accordingly.

Select Curves to Create

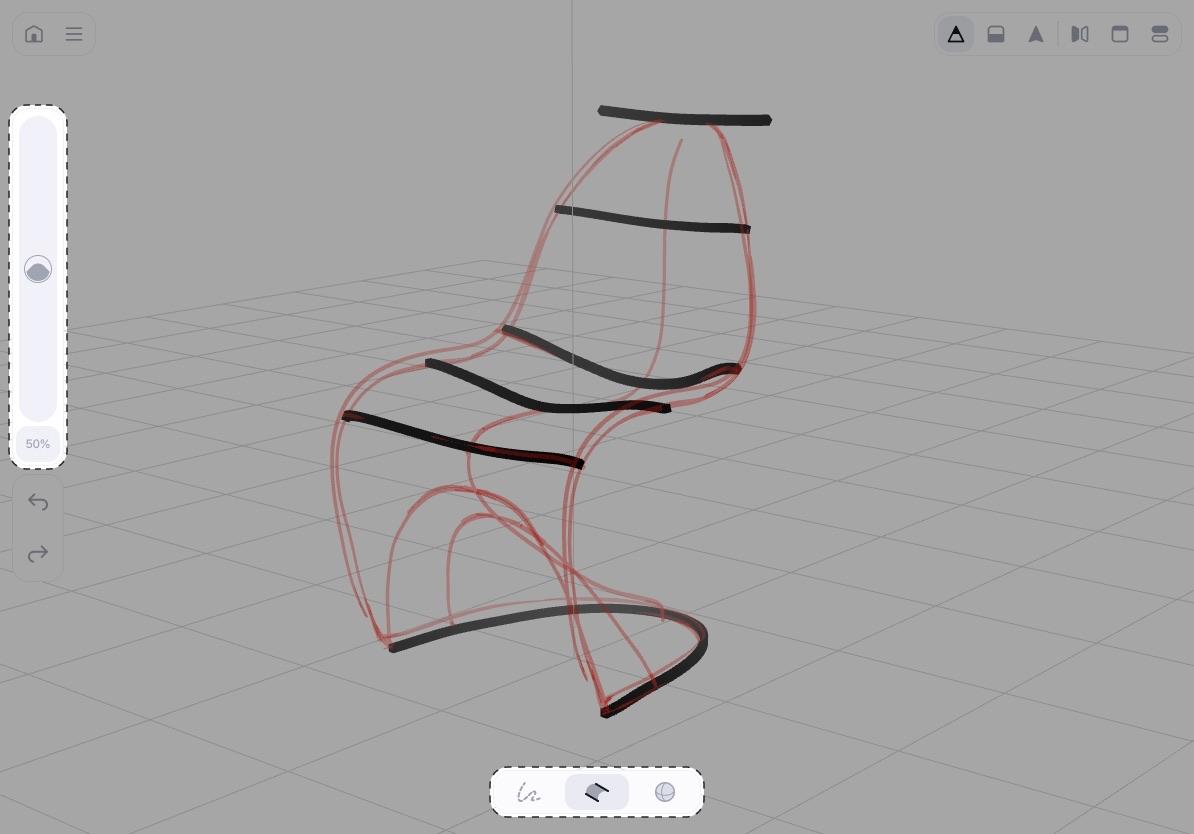

Select the curves you want to connect in sequence. When you select two or more curves, a preview of the 3D Guide will appear immediately.

Tension Slider

Use the slider on the left side of the screen to adjust how much the guide will bend. Slide up for smoother curves and slide down for sharper bends.

Done Loft

Tap Done in the bottom context menu to create the 3D Guide. If you wish to cancel, tap Cancel.

You can save lofted guides in the Resources tab as well. Learn more about Save 3D Guide.
