Clipboard

Explore the Clipboard layout and learn how to add image references and use them.

Layout

The Clipboard is another workspace that includes numerous features.

1. Resize Handle

Resize the Clipboard's size and ratio.

2. Move Handle

Move the Clipboard's position.

3. Opacity Slider

Adjust the Clipboard's opacity.

4. Lock / Unlock Clipboard

Lock or unlock the Clipboard. When the Clipboard is locked, it cannot be moved or resized, and all actions are blocked until it is unlocked.

5. Board

A board where you can view and adjust images.

6. Add New Image

Add a new image. You can add up to two images in total.

7. Next / Previous Image

Switch between images.

8. Options

Access various Clipboard options.

9. Import to Stage

Import the image currently on the board to the stage. The imported image will be removed from the Clipboard.

10. Delete

Delete the image currently on the board.

Actions

Freely move the Clipboard and adjust images to the optimal state for reference.

Hold and Drag to Adjust Clipboard

Hold and drag the resize or move handles to adjust the size or position of the Clipboard. Move the Clipboard to a desired location where you can reference the image without interference while drawing.

Tap and Slide to Adjust Opacity

Tap and slide the opacity slider left or right to adjust the opacity. Sliding left decreases transparency, and sliding right increases it.

Pinch to Zoom and Pan

Place two fingers on the board and pinch to zoom in or out or pan. This is useful when you want to view a part of the image.

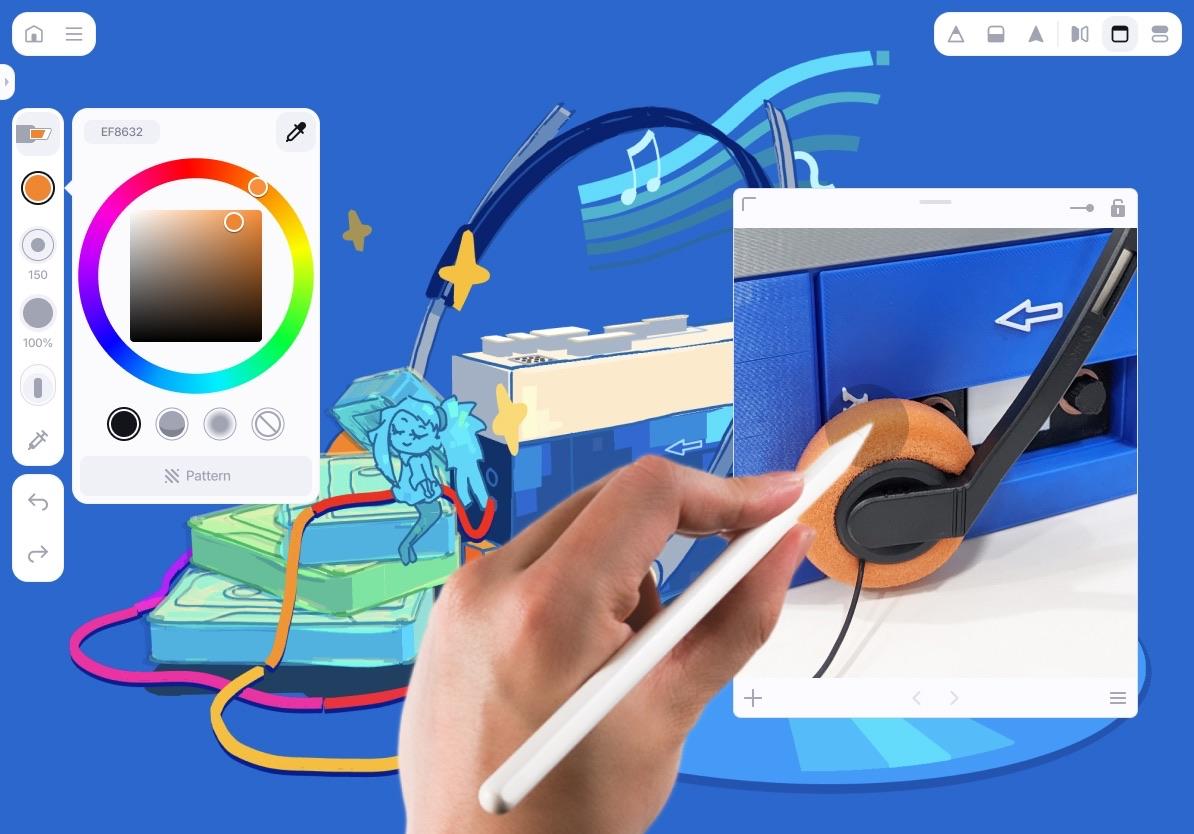

Sample Color from Clipboard

Use the Eyedropper in the color panel to sample a color from the Clipboard image. You can sample for background color in the Environment Tab.

Learn more about Eyedropper.

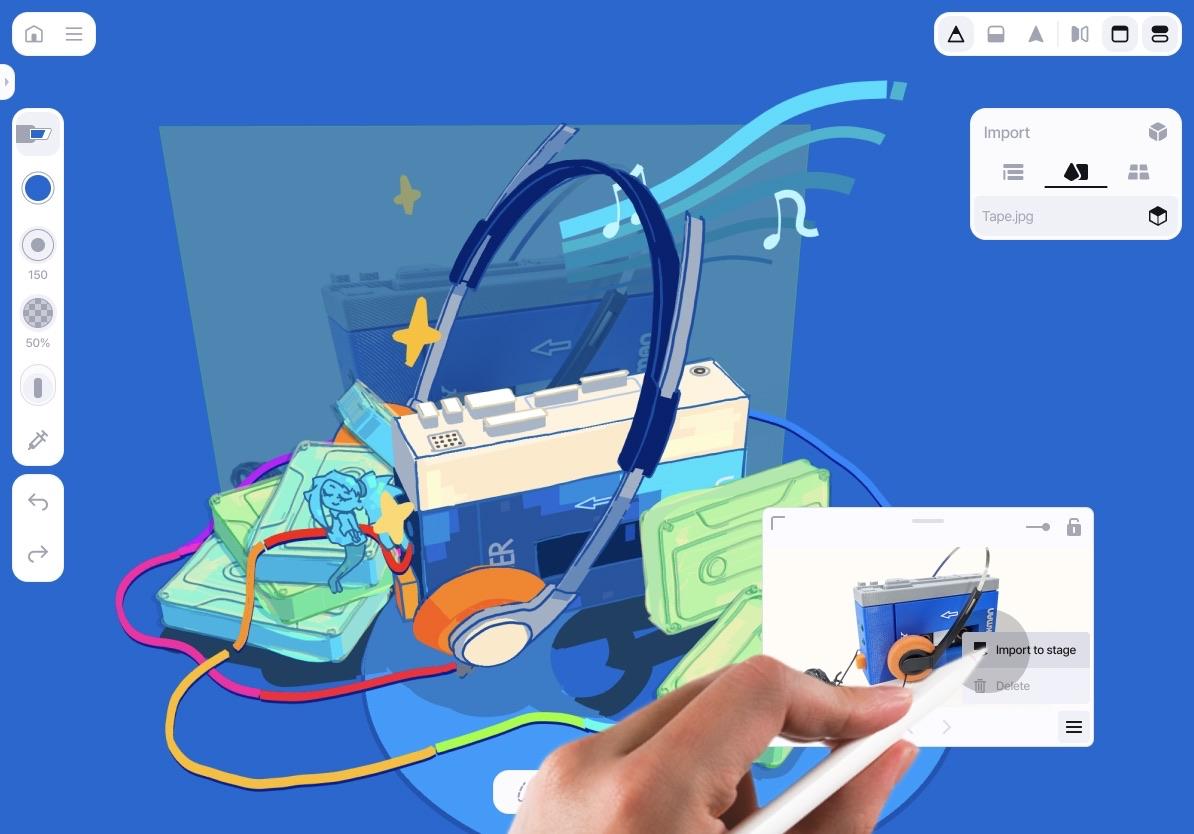

Import Your Image to Stage

Tap Import to Stage to import the image from the board directly into the Stage Panel. The imported image will be placed centered on the grid with a vertical orientation to the current view. You can check the imported image in the Resource Tab.
