Squeeze Menu

Learn about the Squeeze Menu for quick and efficient access to various tools.

Default Menu

The default Squeeze Menu available across all contexts.

Unfold Squeeze Menu

A magical palette that appears wherever you are.

Assign the Squeeze gesture from Apple Pencil settings in the Control Menu, then squeeze or double-tap your Pencil to unfold the Squeeze Menu. It unfolds in the area you last interacted with. If your device supports hover, it appears in the screen area you're hovering over.

Learn more about Gestures.

Undo and Redo

Quickly Undo or Redo from the Squeeze Menu at any time. Use the arrows to perform these functions.

Find Group

Tap the magnifying glass icon next to Undo Redo to use Find Group. Hover or place your Pencil over a curve to see the group's name. Lift your Pencil or press while hovering to activate the selected group.

Learn more about Group Tab.

Contextual Menu

A smart Squeeze Menu that automatically appears based on your current action, significantly boosting speed and efficiency.

Add New Group

Tap the plus icon from the Squeeze Menu to add a new group, automatically activating it. Available when "Draw" is active from the Tool Menu.

Learn more about Add New Group.

Quick Brush Panel

Adjust Stable Stroke intensity, toggle Pressure Sensitivity, or use the Injector. Available when "Draw" is active from the Tool Menu.

Learn more about Brush Panel.

Recall Recent Guide

Reload the most recently closed 3D guide. Available when "Draw" is active from the Tool Menu and a recent guide was closed.

Learn more about 3D Guide.

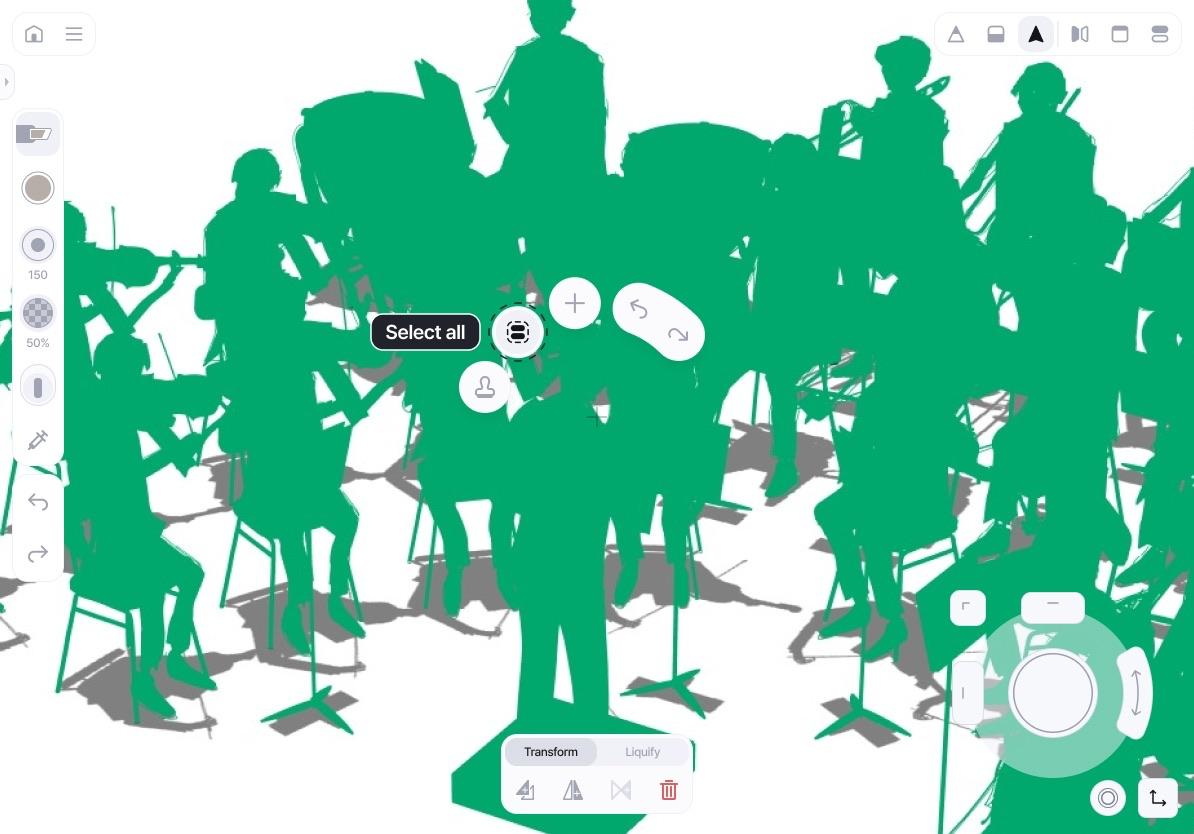

Select All

Select all currently visible groups. Hidden groups remain deselected. Available when "Select" is active from the Tool Menu.

Learn more about Selection.

Stamp

Quickly duplicate and move selected curves or groups. Available when "Select" is active from the Tool Menu, with curves selected.

Barrel Roll During Stamp

After tapping Stamp, drag your Pencil to duplicate. While duplicating, twist a Barrel Roll-enabled Pencil left or right to rotate curves as you duplicate. Tap "Done" or select another tool to finish stamping.
