Duplicate

Learn how to duplicate selected sketches.

Duplicate

Duplicate is essential for repetitive patterns, structural shapes, or just faster sketching.

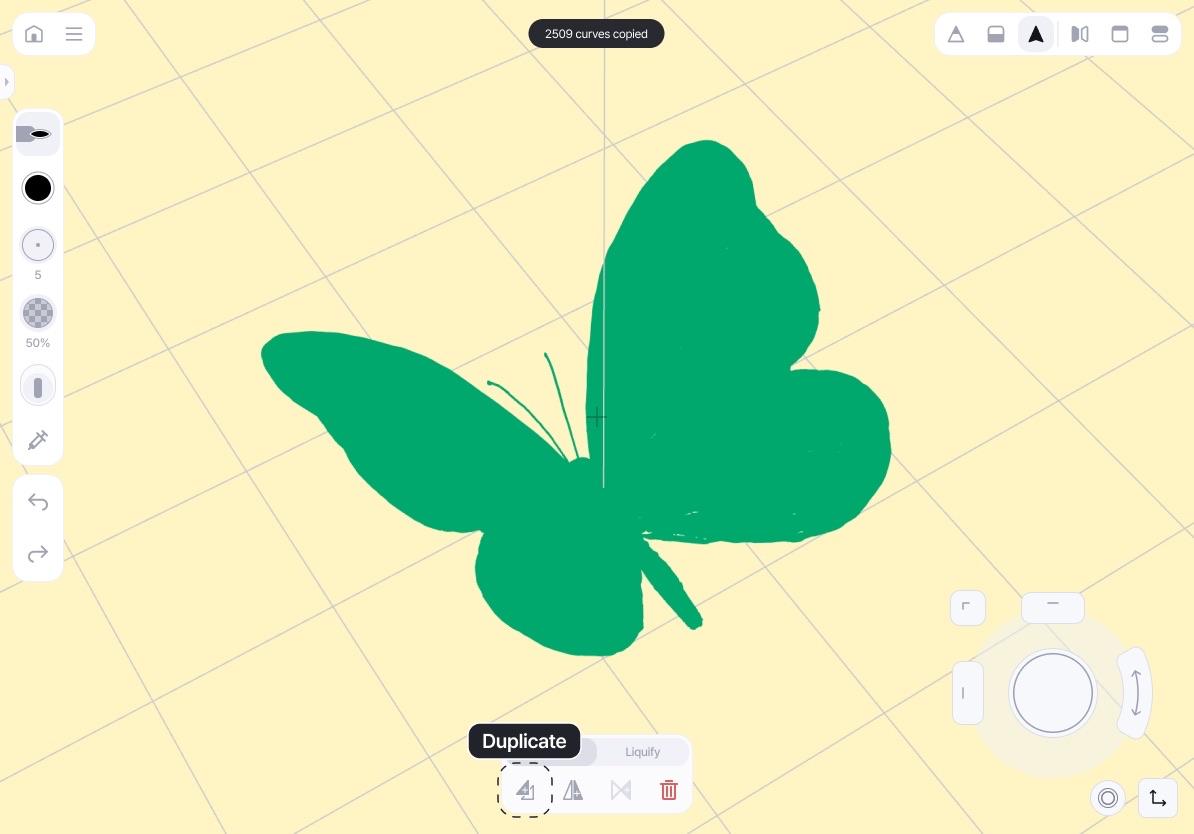

Select Curve and Tap Duplicate

Select the curve you want to duplicate and tap the leftmost icon in the duplicate at the bottom of the screen. A message will appear with the number of duplicated curves. The duplicated curves are in the same position as the original, so be careful not to confuse them.

Duplicate Symmetrically

Symmetry and asymmetry play important roles in both nature and human society, but people tend to recognize symmetry more and see it as a symbol of beauty and order. Use Duplicate Symmetrically.

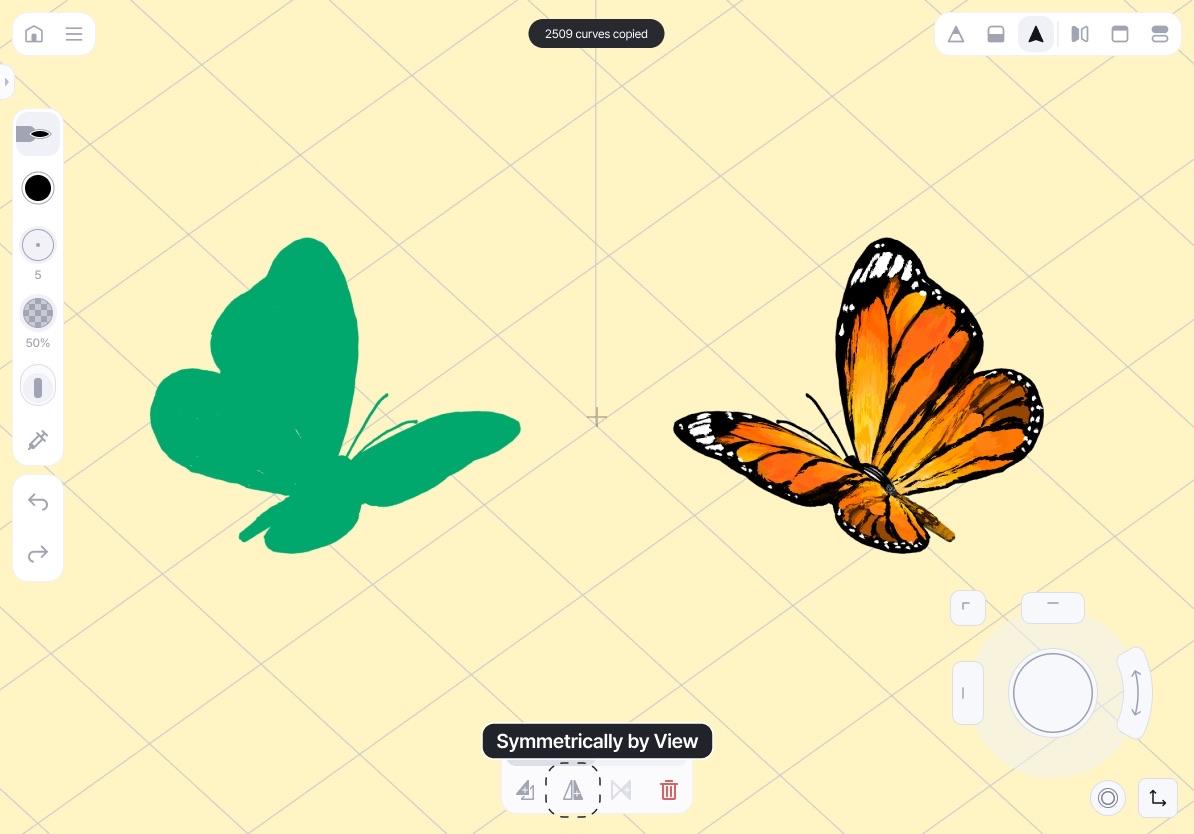

Symmetrically by View

Tap the icon to the right of Duplicate to duplicate symmetrically based on the view direction. If the sketch is skewed to the right, it will be duplicated to the left, and vice versa. This is useful for quickly creating symmetrical sketches.

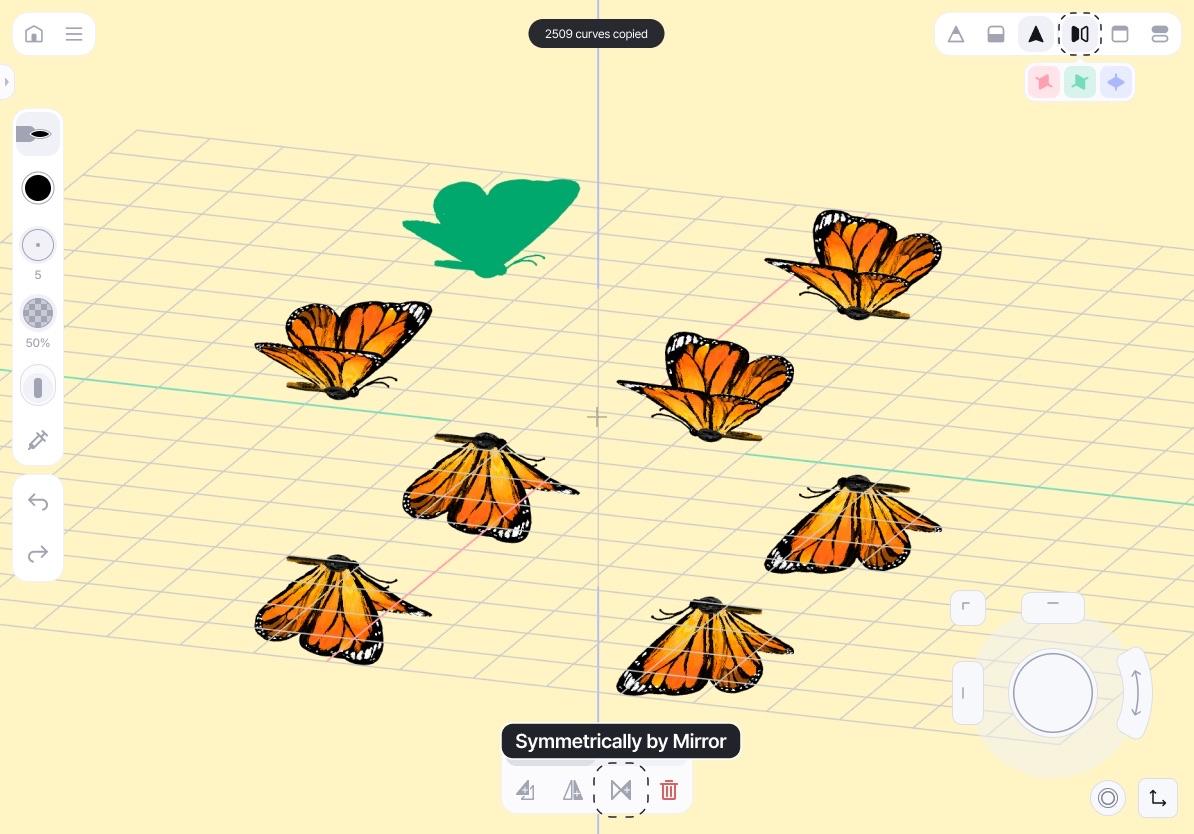

Symmetrically by Mirror

Symmetrically by Mirror can only be used when the mirror is on. It duplicates symmetrically based on the currently active mirror axis. If multiple axes are active, multiple curves will be duplicated at once.

Learn more about Mirror.
